Retrofit Systems

With low operating temperatures wet underfloor heating is not only the most discreet way of heating a room but also the most efficient, creating a comfortable environment with even heat distribution across the whole floor.

We specialise in the installation of Nu-Heat LoPro®Max. A bespoke retro-fit or overlay underfloor heating system.

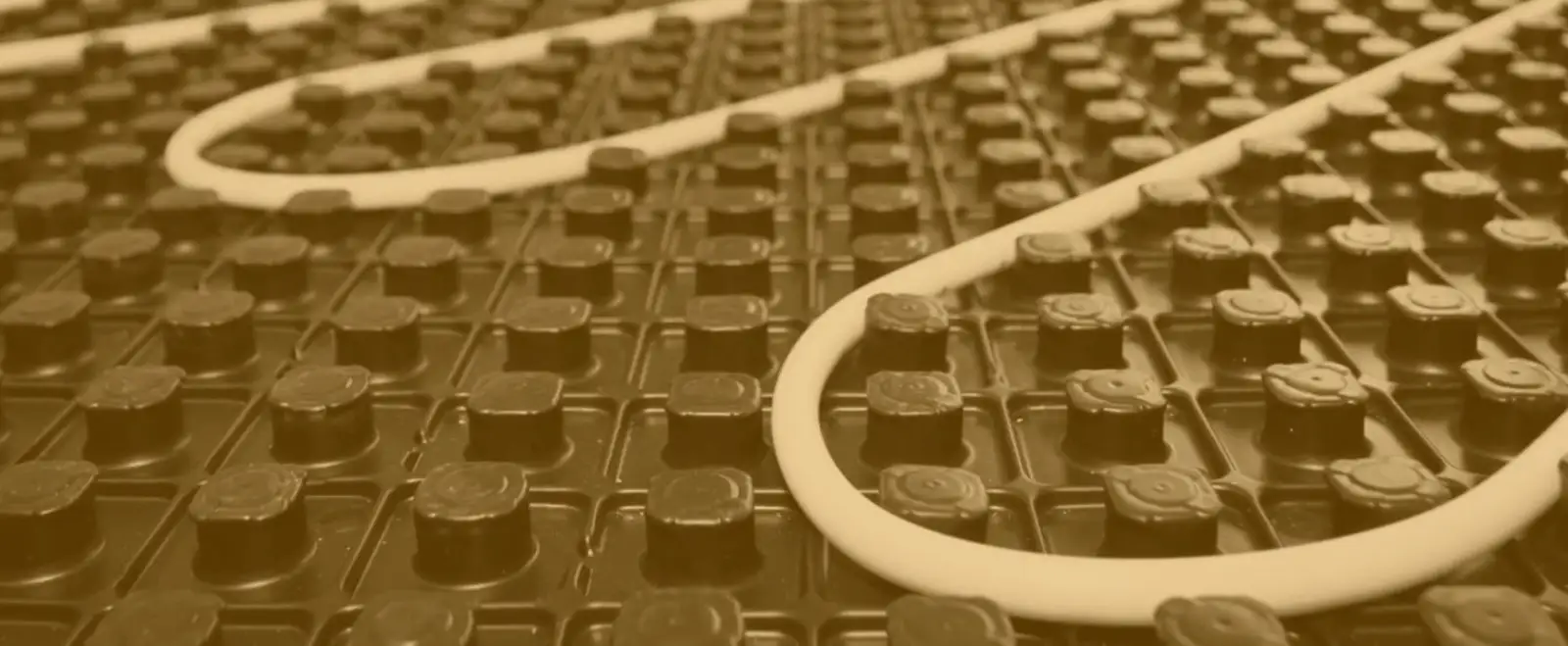

Consisting of a flexible castellated panel, high output heating pipes and fibre reinforced levelling compound - the systems low profile build up means it can be installed over new and crucially over existing floors.

The minimal 22mm height build up makes LoPro®Max the ideal solution for linking new extensions to existing areas of your property with minimal disruption.

With one of the highest heat outputs available and outstanding response times LoPro®Max is an important consideration during renovations.

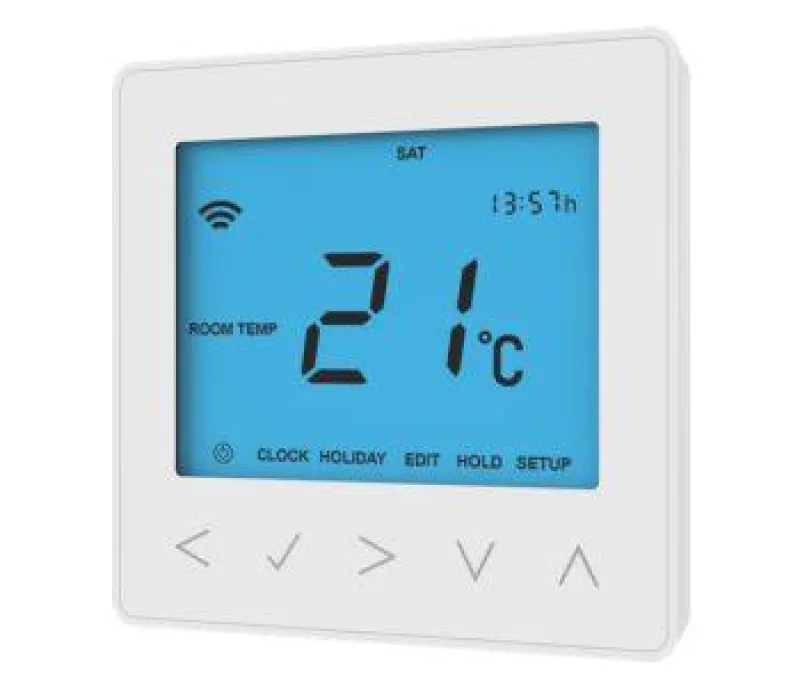

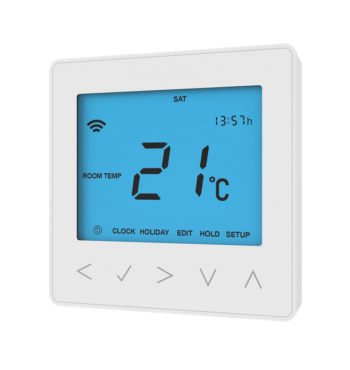

Controls

What are the benefits of underfloor heating?

  • Low running costs
  • Ideal for heat pumps
  • Even heat distribution
  • Comfortable environment
  • Discrete and low maintenance
  • Space saving - no more bulky radiators
  • Added value - the heating choice for home buyers
  • Health - beneficial for reducing dust mites and other particles

What Floor Covering Works Best With Underfloor Heating?

As a general rule hard finishes such as tile and stone will produce the highest heat output when installed over underfloor heating however solid timber flooring and even carpet will also give great results with careful planning.
A designed system from Nu-Heat will consider heat loss calculations to verify the suitability of the chosen floor finishes and ensure heat outputs will meet your expectations



Does Underfloor Heating Work Well With Heat Pumps?

Yes! Underfloor heating is an energy-efficient heating system that distributes heat more evenly at lower temperatures than traditional radiators, leading to potential energy savings and lower running costs. As well as working perfectly with traditional gas boilers, underfloor heatings efficiency is highest when paired with a heat pump and when a property is well insulated, making it a sustainable and comfortable choice for heating a room



Can I Have Underfloor Heating And Radiators?

Yes! You can have both underfloor heating and radiators. A Hybrid System offers both comfort and efficiency. Allowing the flexibility to use low-temperature underfloor heating for continuous warmth, radiators where you want them as well as heated towel rails for drying towels in bathrooms. A proper design and installation with independent zones and controls are crucial for this setup to function effectively and efficiently

Icon efficiency grey

Efficient

Icon safety grey

Safe

Iocn evenheat grey

Even Heat

Icon hidden g

Hidden

Nu heat no strapline white cropped

LoPro®Max

  • Quick response time
  • High heat outputs
  • Simple installation over an existing floor
  • Just 22mm average height increase
  • Outstanding thermal conductivity
  • Range of thermostat options including smart
  • One third the running cost of electricity UFH
  • Fully designed systems with pipe layout drawings
  • OneZone kits available
quote mark
Hi Alex, just wanted to say a massive thank you to you and your team for getting our job poured. All the other trades have complimented on how flat and accurate the floor is! See you on the next one!

Ross Townley
Innovate Design & Build / Essex
★★★★★

How is LoPro®Max installed?

01

Preparation

The sub floor is prepared prior to the system installation including any minor repairs, hoovering, priming and latex smoothing if required

02

Panels & Pipes

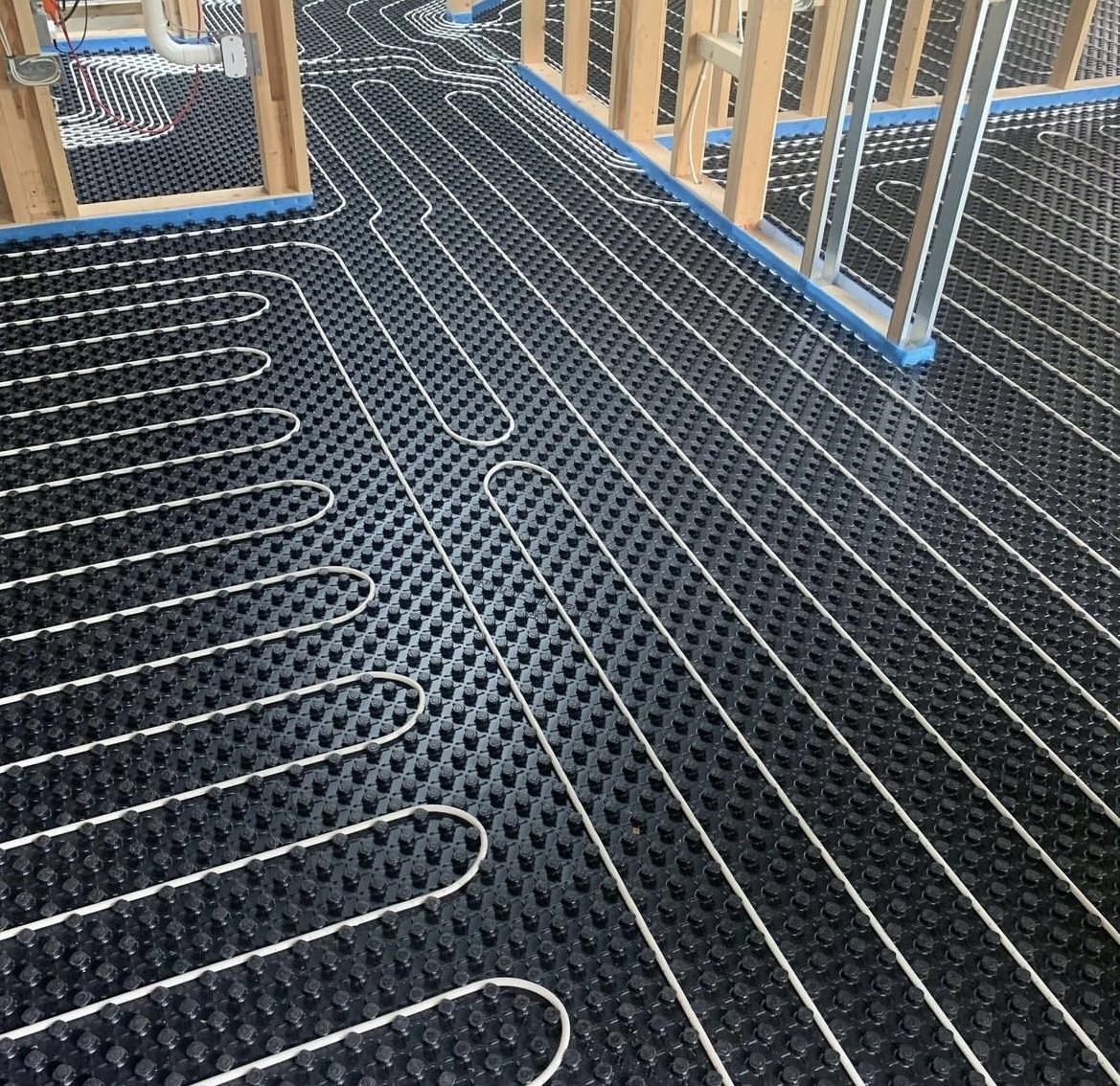

Perimeter edge insulation tape and self adhesive castellated panels are fitted. Next the heating tube can be installed following bespoke layout drawings (simple ones zone options are also available)

03

Pressure Test

Once the heating tube is installed a heating engineer can install the manifold, connect to your existing heating pipework and pressurise the system

04

Screeding

Nu-Heats QuickSet Self Levelling Compound has been specially developed to provide the perfect combination of structural strength and surface finish. Installed via mixer pump to provide a perfect sub floor for your chosen flooring

05

Commissoning

The levelling compound is typically dry to walk on the following day allowing work to continue quickly on site including the commissioning of the system prior to the installation of your chosen flooring

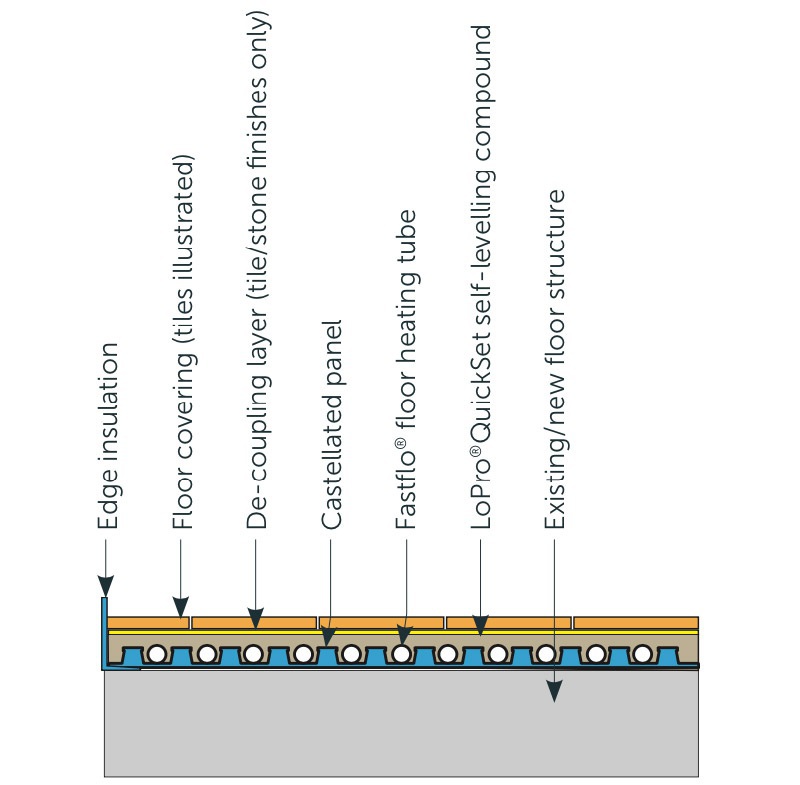

Floor construction diagram

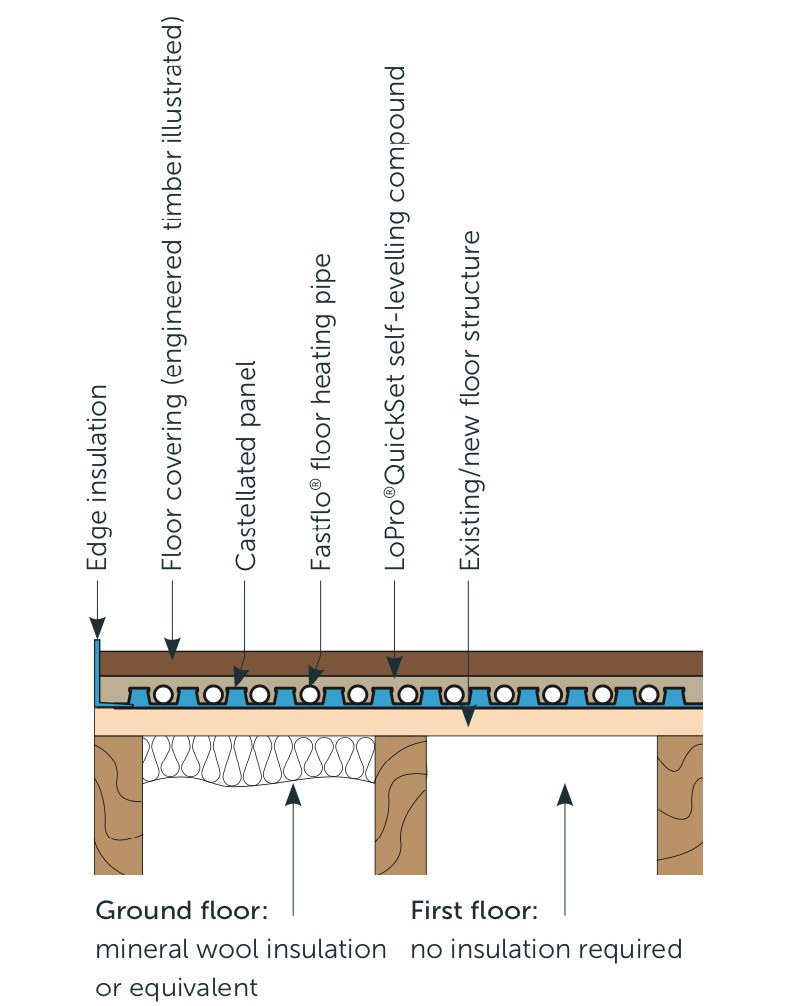

Floor construction 2
Areas Covered in the UK

Contact us

AG Floor Solutions is based in Fleet, Hampshire and operates across London and the South East.

For more information on our products and services please don’t hesitate to contact us...
